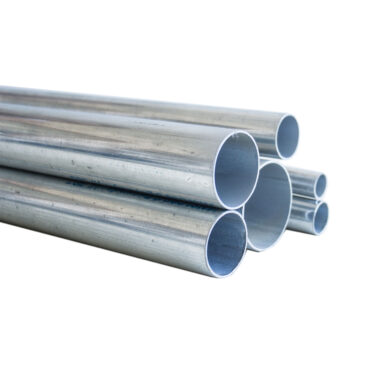

ELECTRICAL METALLIC TUBING(EMT)
Manufactured with high-strength steel, and produced by the electric resistance welding process.
ELECTRICAL METALLIC TUBING(EMT) Description
| INSIDE DIA. | OUTSIDE DIA. | ITEM | PITCH | GAL.COIL | MIN.BEND | STANDARD | |
|---|---|---|---|---|---|---|---|
| IN. | MM | MM | CODE | MM | THICKNESS | RADIUS | PKG METERS |
| 1/2" | 15mm | 20.00mm | RL-F31 | 5.70mm | 0.20mm | 38 Degree | 50 Meters |
| 1" | 25mm | 30.30mm | RL-F33 | 8.70mm | 0.22mm | 55 Degree | 30 Meters |
| 1-1/4" | 32mm | 38.00mm | RL-F34 | 10.50mm | 0.30mm | 62 Degree | 15 Meters |
| 1-1/2" | 38mm | 45.00mm | RL-F35 | 11.40mm | 0.31mm | 90 Degree | 15 Meters |
| 2" | 50mm | 58.00mm | RL-F36 | 11.40mm | 0.35mm | 110 Degree | 10 Meters |
| 2-1/2" | 63mm | 74.50mm | RL-F37 | 14.20mm | 0.45mm | 130 Degree | 10 Meters |
| 3" | 75mm | 83.50mm | RL-F38 | 14.20mm | 0.50mm | 145 Degree | 5 Meters |
| 3-1/2" | 83mm | 95.55mm | RL-F39 | 14.20mm | 0.60mm | 160 Degree | 5 Meters |
| 4" | 100mm | 108.50mm | RL-F40 | 14.20mm | 0.60mm | 210 Degree | 5 Meters |
