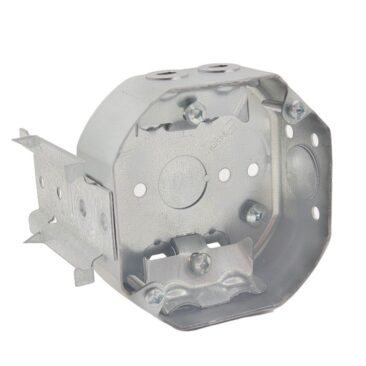

ELECTRICAL METAL BOX
Material: Galvanized Steel
4″*4″*1-1/2″
Certificate: ETL cETL
Description: 4”Octagonal Boxes,“B”bracket,1*1/2”sides KOS,1*1/2”bottom KOS
ELECTRICAL METAL BOX Description
| Dimension | Number and size ofKnockouts and holes | ||||||
|---|---|---|---|---|---|---|---|
| L | W | D | Cu.in | Side | End | Bottom | Accessory |
| 2" | 4" | 1 1/2" | 9 | 6-1/2"KO | 6-1/2"KO | (1) Extension ring; (2) Slots | - |
| 2" | 4" | 1-1/4" | 9.5 | 6-1/2"KO | 2-1/2"KO |
(2) 1/2"KO; (4) mount holes; |
- |
| 2" | 4" | 1-1/2" | 11 | 6-1/2"KO | 2-1/2"KO |
(2) 1/2" KO; (4) mount holes; |
- |
| 2" | 4" | 1-7/8" | 13 | 6-1/2"KO | 2-1/2" KO |
(2) 1/2" KO; (4) mount holes; |
- |
| 2" | 4" | 1-7/8" | 13 | 4-3/4"KO | 2-3/4"KO |
(2) 1/2" KO; (4) mount holes; |
- |
|
| 2" | 4" | 1-7/8" | 13 | 6-1/2"KO | 2-1/2"KO |
(3) 1/2" KO; (3) mount holes; |
- |
|
| 2" | 4" | 1-7/8" | 13 | 6-1/2"KO | 2-1/2"KO | (1) Extension ring; (2) Slots | - |
| 2" | 4" | 2-1/8" | 13.5 | 6-1/2"KO | 2-1/2"KO |
(2) 1/2" KO; (4) mount holes; |
- |
|
| 2" | 4" | 2-1/8" | 13.5 | 4-3/4"KO | 2-3/4"KO |
(2) 1/2" KO; (4) mount holes; |
- |
|
| 2" | 4" | 2-1/8" | 13.5 | 6-1/2"KO | 2-1/2"KO |
(3) 1/2" KO; (3) mount holes; |
- |
|
| 2" | 4" | 2-1/2" | 18.3 | 6-1/2"KO | 2-1/2"KO |
(3) 1/2" KO; (3) mount holes; |
- |
|
